  • 500W Brushless Motor with a max speed of 22-28 mph.
  • 48V 15Ah Lithium Battery with a range of up to 37 miles using throttle and 62 miles using PAS.
  • Front hydraulic suspension fork and rear double spring suspension.
  • 20" x 4.0" off-road fat tires for taking on all terrains in comfort.
  • Max loading capacity of 330 lbs.
  • Charging time of 6-8 hours.



    Front Aluminum Hydraulic Suspension Fork
    Lightweight and strong shock absorber with rebound and lock function. Suitable for all kinds of terrain.
    Rear Double Spring Suspension
    Ride more comfortably on bumpy road surfaces.
    7-Speed Shimano Gear Transmission
    Switch freely between gears when riding.
    20 x 4.0 Inch Off-Road CST Fat Tires
    The all-terrain fat tires provide better traction and more comfort.
    Smart LCD Display
    The LCD provides useful information such as speed, battery level, PAS mode and trip mileage
    48V 15Ah Detachable Battery
    The large capacity lithium battery is detachable making it easy to charge on or off the bike.

    [/DESCRIPTION][SPECIFICATIONS]

    General

    • Brand:Idpoo
    • Model:IM-J1
    • Type:Electric Fat-tire Bike
    • Color:Black

    Specification

    • Frame Material: Aluminium Alloy
    • Battery: 48V 15Ah Lithium-ion Battery
    • Motor: 500W High-speed Brushless Motor
    • Wattage: 500 Watts
    • Dashboard: Smart LCD Display
    • Max Loading: 331 lbs (150 kg)
    • Controller: 48V 22A Integrated controller
    • Charger: 54.6V 2ah AC 100V-240V
    • Speed: 22-28 mph (35-45 km/h)
    • Range: 19-37 miles (30-60 km) by Throttle, 43-62 miles (70-100 km) by PAS
    • Charging time: 6-8 Hours

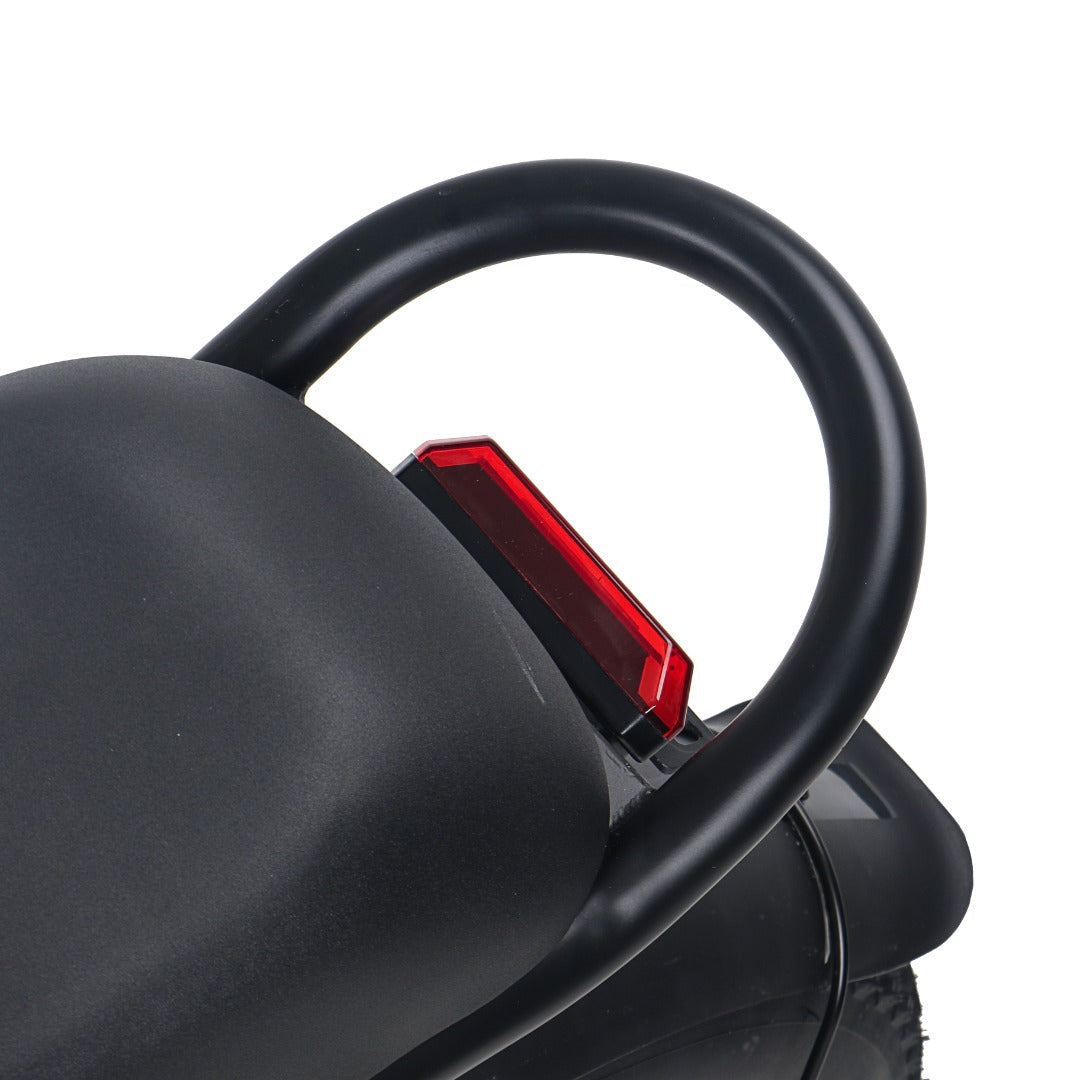

    • LED Light: Front and brake light
    • Tires: 20" x 4.0" Off-road Inflatable CST Tires
    • Max. Gradability: 15-30 degrees
    • Derailleur: SHIMANO 7 Speed
    • Brake system: Front & Rear Mechanical Disc Brakes
    • Driving Modes: Thumb throttle & PAS
    • Pedal Assist system: 5 Levels PAS
    • Front Fork: Aluminum hydraulic suspension fork
    • Rear Suspension: Double Spring Suspensions

    Package Contents

    • 1 x Electric Bike
    • 1 x Charger
    • 1 x User Manual

    [/SPECIFICATIONS][MANUAL]

    IDPOO IM-J1 Electric Bike User Manuals Download
